933112100 | Hirschmann Automation and Control

Valve panel plug, DIN shape C, 3 pole + PE, 250 V, 0.08-0.75 mm², 933112100

Order No.: 50F9434
EAN: 4099889743487
MPN:
933112100
GSSNR 300
Series: GSSNR
Hirschmann Automation and Control

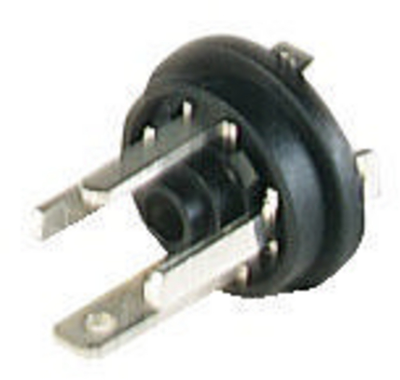

933112100 Hirschmann Automation and Control DIN Valve Connectors Image 1

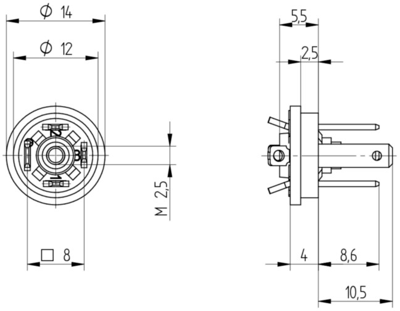

933112100 Hirschmann Automation and Control DIN Valve Connectors Image 2
Image may differ
Unit Price (€ / pc.)
1.2138 € *
Available: 0 pcs.
Leadtime: 12 Weeks **
Total Price:
1.21 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
1.2138 €

Valve Connector Type C, GSSNR 300, Hirschmann

These highly versatile rectangular connectors fit almost anywhere with their space-saving design and are engineered for applications where reliability and precision are imperative.

FEATURES

  • Small size – due to its compact housing design, type C valve connectors are ideally suited for use in confined spaces
  • Strong impact – integrated circuitries protect from inductive voltage and thus provide for a secure and reliable connection
  • Proven technology – valued worldwide and approved by various institutions such as UL, VDE or CSA

Technical Data

  • Version: DIN FORM C
  • Pin number: 3 + PE
  • Type of locking: Central Screw
  • Cable cross-section: 0.08-0.75 mm²
Technical specifications
Version DIN shape C
LED display No
Cable cross-section 0.08-0.75 mm²
Rated voltage 250 V
Pin number 3 pole + PE
Degree of protection (IP) IP65
Type of locking central screw
Logistics
Country of origin HU
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Lead
