933359106 | Hirschmann Automation and Control

Name: Valve connector, DIN shape A, 3 pole + PE, 400 V, 0.25-1.5 mm², 933359106
Brand: Hirschmann Automation and Control
SKU: 50F9205
Price: 2.37 EUR
Availability: OutOfStock

Valve connector, DIN shape A, 3 pole + PE, 400 V, 0.25-1.5 mm², 933359106

Order No.: 50F9205

EAN: 4099889743197

MPN:

933359106

GDMW 3011 DF VI GRAU

Series: GDMW

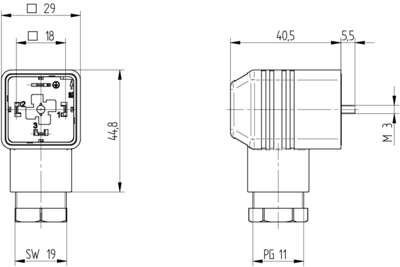

933359106 Hirschmann Automation and Control DIN Valve Connectors Image 1

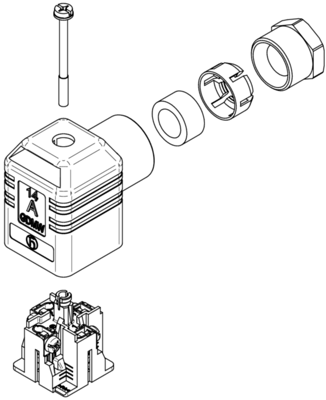

933359106 Hirschmann Automation and Control DIN Valve Connectors Image 2

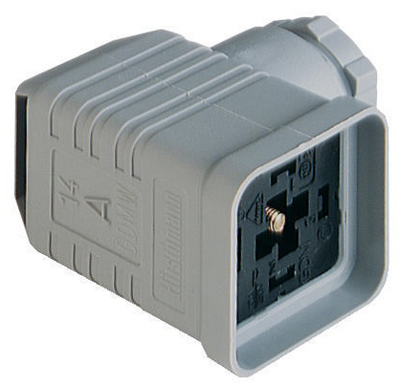

933359106 Hirschmann Automation and Control DIN Valve Connectors Image 3

Image may differ

Key Specification:

Ausführung DIN FORM A

Leiterquerschnitt 0,25-1,5 mm²

Polzahl 3-polig + PE

Nennspannung 400 V

Schutzart (IP) IP65

Download Datasheet Technical specifications

Unit Price (€ / pc.)

2.3681 € *

Available: 0 pcs.

Leadtime: 2 Weeks **

Total Price:

2.37 € *

*incl. VAT plus shipping costs

**Subject to prior sale

Description

Valve connector, GDMW 3011 DF VI GRAU, Hirschmann Automation and Control Automation and Control

GDMW High-Voltage Line DIN Standard Field Attachable Connector: Form A, 4-pin (3+1PE; PE across cable outlet), grey housing, screw type, PG11; without circuitry, 400 V AC/DC, 16 A.

Technical specifications

	Ausführung	DIN FORM A
	Beschaltung	ohne Beschaltung
	LED-Anzeige	No
	Leiterquerschnitt	0,25-1,5 mm²
	Nennspannung	400 V
	Polzahl	3-polig + PE
	Schutzart (IP)	IP65
	Verriegelung	Zentralschraube
