933932106 | Hirschmann Automation and Control

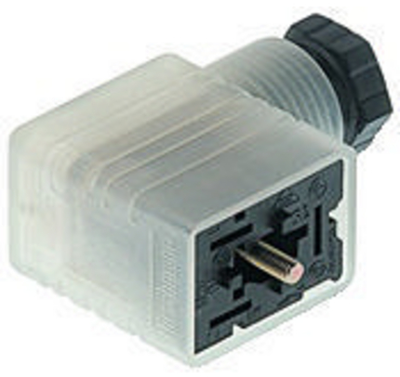

Valve connector, DIN shape B, 2 pole + PE, 250 V, 0.25-1.5 mm², 933932106
Unit Price (€ / pc.)
4.7243 € *
Available: 0 pcs.
Leadtime: 20 Weeks **
Valve connector, GML 209 NJ LED 230 VR YE grau, Hirschmann Automation and Control
Dependable Technology, Perfect Connection.
Intuitive handling combined with a particularly durable design makes this proven type B valve connector the ideal choice for challenging industrial automation surroundings.
Features
- Easy to connect - with plug-andplay, prewired cordsets or flexible field attachables, user-friendly
- Easy to maintain - protective circuitries combined with all-around clearly visible LED function displays facilitate quick optical controls and ease of maintenance
- Easy to rely on - ideal for harsh applications due to an extended temperature range, high impermeability and a vibration-proof design
Technical specifications
| Ausführung | DIN FORM B | |
| Beschaltung | Varistor | |
| LED-Anzeige | Yes | |
| Leiterquerschnitt | 0,25-1,5 mm² | |
| Nennspannung | 250 V | |
| Polzahl | 2-polig + PE | |
| Schutzart (IP) | IP65 | |
| Verriegelung | Zentralschraube |
Download
Logistics
| Ursprungsland | HU |
| Zolltarifnummer | 85366990 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
