934459002 | Hirschmann Automation and Control

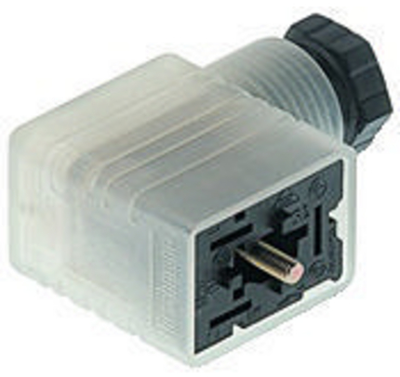

Valve connector, DIN shape B, 2 pole + PE, 30 V, 0.25-1.5 mm², 934459002
Unit Price (€ / pc.)
4.9028 € *
Available: 0 pcs.
Leadtime: 20 Weeks **
Valve connector, GML 216 NJ LED 24 VR YE schwarz, Hirschmann Automation and Control
Dependable Technology, Perfect Connection.
Intuitive handling combined with a particularly durable design makes this proven type B valve connector the ideal choice for challenging industrial automation surroundings.
Features
- Easy to connect - with plug-andplay, prewired cordsets or flexible field attachables, user-friendly
- Easy to maintain - protective circuitries combined with all-around clearly visible LED function displays facilitate quick optical controls and ease of maintenance
- Easy to rely on - ideal for harsh applications due to an extended temperature range, high impermeability and a vibration-proof design
Technical specifications
| Version | DIN FORM B | |
| Wiring | Varistor | |
| LED display | Yes | |
| Cable cross-section | 0,25-1,5 mm² | |
| Rated voltage | 30 V | |
| Pin number | 2-polig + PE | |
| Degree of protection (IP) | IP65 | |
| Type of locking | Zentralschraube |
Download
Logistics
| Country of origin | HU |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Blei |
