934618004 | Hirschmann Automation and Control

Valve connector, DIN shape A, 2 pole + PE, 250 V, 0.25-1.5 mm², 934618004

Order No.: 50F260
EAN: 4099889742589
MPN:
934618004
GDMF 2016 DCAA
Series: GDMF
Hirschmann Automation and Control

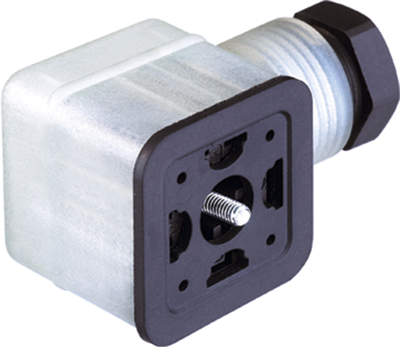

934618004 Hirschmann Automation and Control DIN Valve Connectors Image 1
934618004 Hirschmann Automation and Control DIN Valve Connectors Image 2
Image may differ
Print
Key Specification:
Ausführung DIN FORM A
Leiterquerschnitt 0,25-1,5 mm²
Polzahl 2-polig + PE
Nennspannung 250 V
Schutzart (IP) IP65
Show 10 variants
Download Datasheet Technical specifications
Unit Price (€ / pc.)
6.4022 € *
Available: 0 pcs.
Leadtime: 20 Weeks **
Total Price:
6.40 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
6.4022 €
Description
Technical specifications
Download
Logistics
Compliance
Variations

Valve connector, GDMF 2016 DCAA, Hirschmann Automation and Control Automation and Control

GDMF Flat Line DIN Standard Field Attachable Connector: Form A, 3-pin (2+1PE; PE across cable outlet), transparent housing, screw type, M16; with yellow LED, 110 V AC/DC, 10 A.
Technical specifications
Ausführung DIN FORM A
LED-Anzeige Yes
Leiterquerschnitt 0,25-1,5 mm²
Nennspannung 250 V
Polzahl 2-polig + PE
Schutzart (IP) IP65
Verriegelung Zentralschraube
Show similar products 0
Logistics
Ursprungsland HU
Zolltarifnummer 85366990
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei No
Substanz Beschreibung Blei
