934888011 | Hirschmann Automation and Control
Valve connector, DIN shape A, 2 pole + PE, 24 V, 0.25-1.5 mm², 934888011
Unit Price (€ / pc.)
12.6973 € *
Available: 920 pcs.
Leadtime: 3 Weeks **
Total Price:
12.70 € *
Price list
Quantity
Price per unit*
1 pcs.
12.6973 €
10 pcs.
11.1622 €
50 pcs.
10.4244 €
150 pcs.
9.9484 €
500 pcs.
9.4486 €
*incl. VAT plus shipping costs
**Subject to prior sale

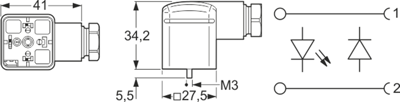

Valve connector, GDM21F6-D24-10D,Hirschmann Automation and Control
2- or 3-pole with or without PE, contact arrangement to DIN EN 175 301-803-A, pilot PE contact. Leakage and air gaps compliant with DIN EN 60664-1 and VDE 0110/1. Degree of protection (in mated and secured state): IP 65, IP67, optional IP68 or IP69K. Housing and contact block: made of PVC or polyurethane (PUR), vibration-proof lock with screw. Supplied with screws.
With safety circuit (free-wheeling diode) and yellow LED status display; Housing: transparent. Cable diameters: from 4.5 to 10 mm. Screw termination: up to max. 1.5 mm². Operating voltage/current: 24 V AC/DC/10 A. Operating temperatures: - 25 to +90 °C
Type: GDM21F6-D24-10D, 2-pole + PE.
Technical specifications
| Ausführung | DIN FORM A | |
| Beschaltung | Freilaufdiode | |
| LED-Anzeige | Yes | |
| Leiterquerschnitt | 0,25-1,5 mm² | |
| Nennspannung | 24 V | |
| Polzahl | 2-polig + PE | |
| Schutzart (IP) | IP65 | |
| Verriegelung | Zentralschraube |
Download
Logistics
| Ursprungsland | HU |
| Zolltarifnummer | 85366990 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
