934888014 | Hirschmann Automation and Control

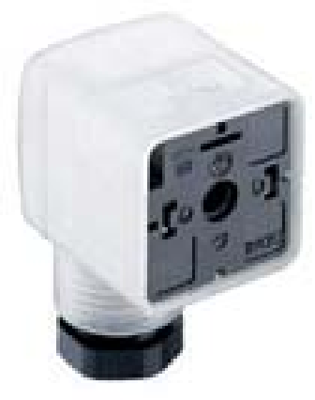

Valve connector, DIN shape A, 2 pole + PE, 24 V, 0.25-1.5 mm², 934888014
Unit Price (€ / pc.)
15.2677 € *
Available: 49 pcs.
Leadtime: 20 Weeks **
Total Price:
15.27 € *
Price list
Quantity
Price per unit*
1 pcs.
15.2677 €
10 pcs.
14.0420 €
50 pcs.
12.7806 €
100 pcs.
11.5073 €
*incl. VAT plus shipping costs
**Subject to prior sale

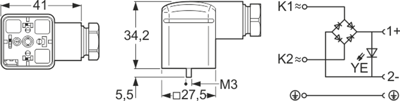

With bridge rectifier, type GDM21F6-D44.
2- or 3-pole with or without PE, contact arrangement to DIN EN 175 301-803-A, pilot PE contact. Leakage and air gaps compliant with DIN EN 60664-1 and VDE 0110/1. Degree of protection (in mated and secured state): IP 65, IP67, optional IP68 or IP69K. Housing and contact block: made of PVC or polyurethane (PUR), vibration-proof lock with screw. Supplied with screws.
With safety circuit (varistor) and yellow LED status display; Housing: transparent. Cable diameters: from 4.5 to 10 mm. Screw termination: up to max. 1.5 mm². Operating voltage/current: 24 V AC/DC/1.0 A. Operating temperatures: - 25 to +90 °C.
Type: GDM21F6-D44-10D, 2-pole + PE
Technical specifications
| Version | DIN shape A | |
| Wiring | bridge rectifier | |
| LED display | Yes | |
| Cable cross-section | 0.25-1.5 mm² | |
| Rated voltage | 24 V | |
| Pin number | 2 pole + PE | |
| Degree of protection (IP) | IP65 | |
| Type of locking | central screw |
Download
Logistics
| Country of origin | HU |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
