934888034 | Hirschmann Automation and Control

Valve connector, DIN shape A, 2 pole + PE, 24 V, 0.25-1.5 mm², 934888034

Order No.: 51F265
EAN: 4099889744712
MPN:
934888034
GDM21F6-V24-10D
Series: GDM
934888034 Hirschmann Automation and Control DIN Valve Connectors
Image may differ
Unit Price (€ / pc.)
6.783 € *
Available: 0 pcs.
Leadtime: 12 Weeks **
Total Price:
6.78 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
6.783 €

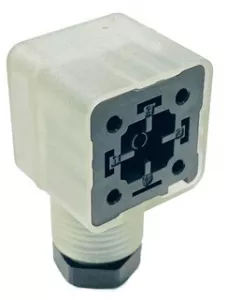

Valve connector, GDM21F6-V24-10D,Hirschmann Automation and Control

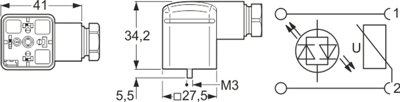

2- or 3-pole with or without PE, contact arrangement to DIN EN 175 301-803-A, pilot PE contact. Leakage and air gaps compliant with DIN EN 60664-1 and VDE 0110/1. Degree of protection (in mated and secured state): IP 65, IP67, optional IP68 or IP69K. Housing and contact block: made of PVC or polyurethane (PUR), vibration-proof lock with screw. Supplied with screws.

With safety circuit (varistor) and yellow LED status display, 2-pole + PE; Housing: transparent. Cable diameters: from 4.5 to 10 mm. Screw termination: up to max. 1.5 mm². Operating voltage/current: 24 V AC/DC/10 A. Operating temperatures: - 25 to +90 °C.

Type: GDM21F6-V24-10D.

Technical specifications
Version DIN FORM A
Cable cross-section 0,25-1,5 mm²
Pin number 2-polig + PE
Rated voltage 24 V
Degree of protection (IP) IP65
Wiring Varistor
LED display Yes
Type of locking Zentralschraube
Logistics
Country of origin HU
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
