934888039 | Hirschmann Automation and Control

Valve connector, DIN shape A, 2 pole + PE, 24 V, 0.25-1.5 mm², 934888039

Order No.: 51F260
EAN: 4099889744675
MPN:
934888039
GDM21F6-V44-10D
Series: GDM

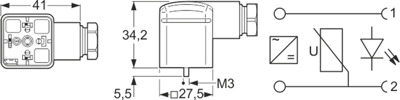

934888039 Hirschmann Automation and Control DIN Valve Connectors Image 1

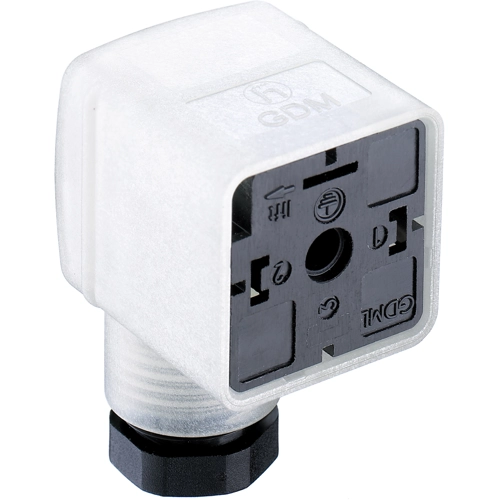

934888039 Hirschmann Automation and Control DIN Valve Connectors Image 2
Image may differ
Unit Price (€ / pc.)
7.4494 € *
Available: 0 pcs.
Leadtime: 20 Weeks **
Total Price:
7.45 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
7.4494 €

Valve connector, GDM21F6-V44-10D,Hirschmann Automation and Control

2- or 3-pole with or without PE, contact arrangement to DIN EN 175 301-803-A, pilot PE contact. Leakage and air gaps compliant with DIN EN 60664-1 and VDE 0110/1. Degree of protection (in mated and secured state): IP 65, IP67, optional IP68 or IP69K. Housing and contact block: made of PVC or polyurethane (PUR), vibration-proof lock with screw. Supplied with screws.

With safety circuit (varistor) and yellow LED status display, 2-pole + PE, cable diameters from 4.5 to 10 mm, screw termination up to max. 1.5 mm²; Housing: transparent. Operating voltage/current: 24 V AC/DC/1.0 A. Operating temperatures: - 25 to +90 °C.

Type: GDM21F6-V44-10D.

Technical specifications
Version DIN FORM A
Cable cross-section 0,25-1,5 mm²
Pin number 2-polig + PE
Rated voltage 24 V
Degree of protection (IP) IP65
Wiring Brückengleichrichter, Varistor
LED display Yes
Type of locking Zentralschraube
Logistics
Country of origin HU
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
