934888127 | Hirschmann Automation and Control
Valve connector, DIN shape A, 3 pole + PE, 250 V, 0.25-1.5 mm², 934888127
Unit Price (€ / pc.)
3.6771 € *
Available: 140 pcs.
Leadtime: 36 Weeks **
Total Price:
3.68 € *
Price list
Quantity
Price per unit*
1 pcs.
3.6771 €
10 pcs.
3.3796 €
50 pcs.
3.0821 €
100 pcs.
2.7727 €
*incl. VAT plus shipping costs
**Subject to prior sale

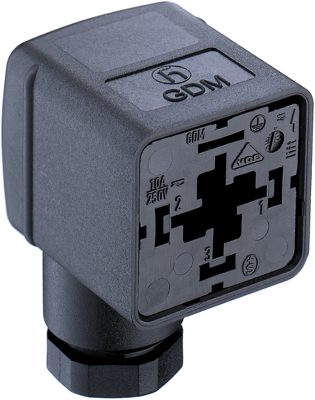

Valve connector, GDM31AL-A0U-10F,Hirschmann Automation and Control
3-pole with or without PE, contact arrangement to DIN EN 175 301-803-A, pilot PE contact. Leakage and air gaps compliant with DIN EN 60664-1 and VDE 0110/1. Degree of protection (in mated and secured state): IP 65, IP67, optional IP68 or IP69K. Housing and contact block: made of PVC or polyurethane (PUR), vibration-proof lock with screw. Supplied with screws.
With PG 9 termination for cables diameters from 4.5 to 10 mm. Screw terminals for up to max. 1.5 mm². Rated voltage/current: 250 V AC/DC/16 A. Color: black. Certifications: VDE, SEV. Degree of protection: IP65, IP67, IP68. Operating temperatures: - 40 to +125 °C.
strain relief
Type: GDM31AL-A0U-10F, 3-pole + PE.
Technical specifications
| Ausführung | DIN FORM A | |
| Beschaltung | ohne Beschaltung | |
| LED-Anzeige | No | |
| Leiterquerschnitt | 0,25-1,5 mm² | |
| Nennspannung | 250 V | |
| Polzahl | 3-polig + PE | |
| Schutzart (IP) | IP65/IP67 | |
| Verriegelung | Zentralschraube |
Download
Logistics
| Ursprungsland | HU |
| Zolltarifnummer | 85366990 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
