930961517 | Hirschmann Automation and Control

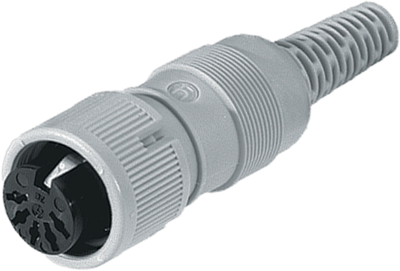

Jack, 5 pole, solder cup, screw locking, straight, 930961517

Order No.: 70F6856
EAN: 4099889739565
MPN:
930961517
MAK 5100 S
Series: MAK
Hirschmann Automation and Control
930961517 Hirschmann Automation and Control Other Circular Connectors
Image may differ

Not suitable for new designs, LTB: 06.30.2024

Unit Price (€ / pc.)
5.2122 € *
Available: 112 pcs.
Total Price:
5.21 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
5.2122 €

DIN audio connector, plastic, type Hirschmann MA.

To EN 60130-09 and DIN 41524, solder terminals for conductors to max. 0.34 mm²; Contacts: tinned brass. Contact block: PA 66 to UL 94 V-2. Rated voltage: 34 V AC/DC. Rated current: 4.0 A. Degree of protection (IEC 60529): IP 30. Operating temperatures: - 20 to +60 °C.

DIN audio jacks with screw lock, type MAK.

Jack with screw lock; Housing material: PE.

Type: MAK 5100 S, 5-pole, gray

Technical specifications
Version DIN jack
Additional parts equipped
Shell Material plastic
Cable diameter 5.5 mm
Contact connection solder cup
contact surface tin-plated
Cable cross-section 0.34 mm²
Assembly cable assembly
Orientation straight
Pin number 5 pole
Type of locking screw locking
Logistics
Country of origin HU
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
