931569517 | Hirschmann Automation and Control

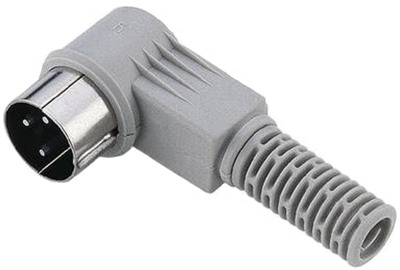

Plug, 5 pole, solder cup, angled, 931569517
Not suitable for new designs, LTB: 06.30.2024
Unit Price (€ / pc.)
5.7477 € *
Available: 84 pcs.
DIN audio connector, plastic, type Hirschmann MAWI 50 B.
To EN 60130-09, solder terminals for conductors to max. 0.34 mm²; Contacts: tinned brass. Contact block: PA 66 to UL 94 V-2. Rated voltage: 34 V AC/DC. Rated current: 4.0 A. Degree of protection (IEC 60529): IP 30. Operating temperatures: - 20 to +60 °C.
DIN audio plugs, angled, type MAWI.
Angled plug with insulated grip, without screw lock; Housing material: PE.
Type: gray
Technical specifications
| Version | DIN plug | |
| Additional parts | equipped | |
| Shell Material | plastic | |
| Cable diameter | 6.5 mm | |
| Contact connection | solder cup | |
| Cable cross-section | 0.34 mm² | |
| Assembly | cable assembly | |
| Orientation | angled | |
| Pin number | 5 pole |
Download
Logistics
| Country of origin | HU |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
