932455100 | Hirschmann Automation and Control

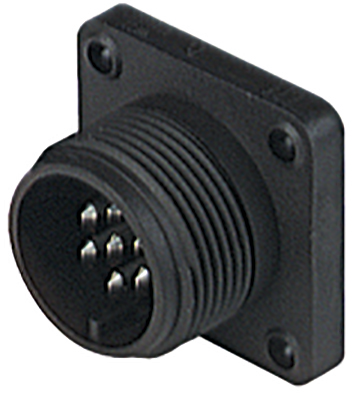

Panel plug, 7 pole, solder cup, screw locking, straight, 932455100
Unit Price (€ / pc.)
7.1638 € *
Available: 207 pcs.
Leadtime: 4 Weeks **
Total Price:
7.16 € *
Price list
Quantity
Price per unit*
1 pcs.
7.1638 €
10 pcs.
6.2951 €
100 pcs.
5.5335 €
250 pcs.
5.3074 €
*incl. VAT plus shipping costs
**Subject to prior sale
Circular connector to MiL-C 5015 or VG 95 342, type Hirschmann CM.
Robust, vibration-proof, impact-resistant, for ultimate stress, screwable version; Pin diameter: 1.6 mm. Rated voltage: 50 V AC/DC. Contact resistance: <5.0 mohm. Material housing/ contact block: PA 66-GF 25. Contact finish: silver. Inflammability class: UL 94 V-1. Housing color: black. Connection type: solder contacts. Degree of protection (IEC 60529): IP 67. Degree of soiling: 3. Operating temperatures: –40 to +90 °C. Mounting surface temperature: max. 100 °C.

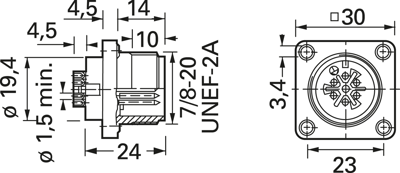

Chassis plugs, 6-pole + PE, type CM 02 E 14S-61P.
With ground contact and flange; Conductor cross-section: max. 1.0 mm². Housing mount: screws. Housing size: 14S. Rated current: 10 A.
Type: CM 02 E 14S-61P, chassis plug
Technical specifications
| Version | flange plug | |
| Shell Material | PA | |
| Contact connection | solder cup | |
| contact surface | silver-plated | |
| Cable cross-section | 1.5 mm² | |
| Assembly | PCB mounting | |
| Orientation | straight | |
| Pin number | 7 pole | |
| Type of locking | screw locking |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
