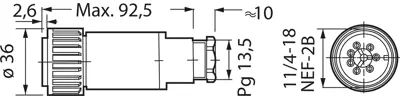

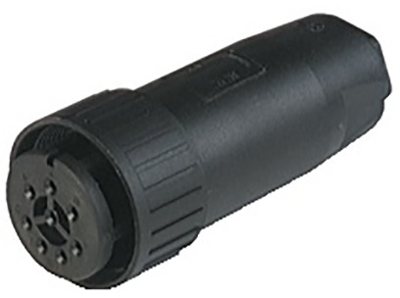

Jack, 8 pole, solder cup, screw locking, straight, 932842100
Circular connector to MiL-C 5015 or VG 95 342, type Hirschmann CM.
Robust, vibration-proof, impact-resistant, for ultimate stress, screwable version; Pin diameter: 1.6 mm. Rated voltage: 50 V AC/DC. Contact resistance: <5.0 mohm. Material housing/ contact block: PA 66-GF 25. Contact finish: silver. Inflammability class: UL 94 V-1. Housing color: black. Connection type: solder contacts. Degree of protection (IEC 60529): IP 67. Degree of soiling: 3. Operating temperatures: –40 to +90 °C. Mounting surface temperature: max. 100 °C.
Cable sockets, straight, 8-pole, type CM 06 EA 20-7S.
Cable diameters: 10 to 12 mm. Conductor cross-section: max. 1.5 mm². Cable gland: Pg 13.5. Cable strain relief: clamping cage. Housing size: 20. Rated current: 10 A.
Type: CM 06 EA 20–7S, cable socket
| Ausführung | Kupplung | |
| Gehäusematerial | PA | |
| Kabeldurchmesser | 10 bis 12 mm | |
| Kontaktanschluss | Lötkelch | |
| Kontaktoberfläche | versilbert | |
| Leiterquerschnitt | 1,5 mm² | |
| Montage | Kabelmontage | |
| Orientierung | gerade | |
| Polzahl | 8-polig | |
| Verriegelung | Schraubverriegelung |
| Ursprungsland | HU |
| Zolltarifnummer | 85366990 |
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
