934131100 | Hirschmann Automation and Control

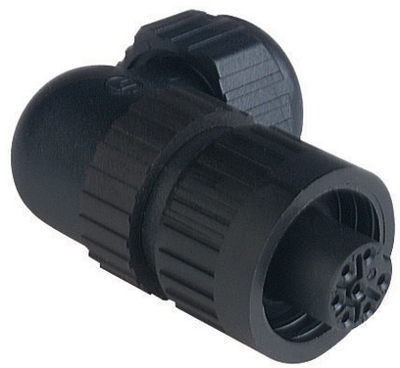

Jack, 7 pole, solder cup, screw locking, angled, 934131100
Circular connector for line voltage, 6-pole + PE, type Hirschmann CA 6.
Robust. The dimensions, size, pole arrangements and contact type are compatible to circular connector series of other brands; Housing: made of impact resistant, glass fiber-reinforced plastic (black). Mounting: vibration-proof screw mounting with interlocking ring. Degree of protection to IEC 60529: IP 67. Degree of soiling: 3. Rated voltage: 250 V AC/DC. Rated current: 10 A. Contact resistance: 5.0 mohm. Cable gland: M 22 x 2. Pin diameter: 1.5 mm. Contact finish: silver. Type of connection: solder terminals. Conductor cross-section: max. 0.75 mm². Operating temperatures: –40 to +90 °C. Combustibility to UL standard 94 V-0. Certifications: VDE, UL.
Cable sockets, straight and angled, type CA 6.
With integrated strain relief, suitable for cable diameters from 6.0 to 12 mm.

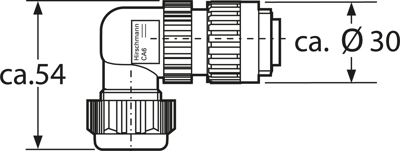

Type: CA 6 W LD, cable socket, angled
| Ausführung | Buchse | |
| Gehäusematerial | Messing | |
| Kabeldurchmesser | 6 bis 12 mm | |
| Kontaktanschluss | Lötkelch | |
| Kontaktoberfläche | versilbert | |
| Leiterquerschnitt | 0,75 mm² | |
| Montage | Leiterplattenmontage | |
| Orientierung | abgewinkelt | |
| Polzahl | 7-polig | |
| Verriegelung | Schraubverriegelung |
| Ursprungsland | HU |
| Zolltarifnummer | 85366990 |
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
