931300055 | Hirschmann Automation and Control
Connection line, Europe, plug STAS 3, straight on open end, H05RR-F4G0.75 mm², gray, 1 m, 931300055
Miniature connectors, 3-pole + PE, series ST, type Hirschmann STAS../STAK.
With screw terminals for conductor cross-sections of max. 1.5 mm²; Contacts: CuZn, tin. Housing: PA to UL 94 VDC1, gray. Contact carrier: PA to UL 94 HB. Rated voltage: 250 VDC/400 VAC. Rated current: 10 A DC/16 A AC. Contact resistance: 5.0 mohm. Pin diameter: 2.0 mm. Degree of protection to IEC 60529: IP 54. Degree of soiling: 3. Cable gland: Pg 11. Cable diameters: 6.0 mm to 10 mm. Operating temperatures: –30 °C to +90 °C. Certifications: VDE, SEV, UL.

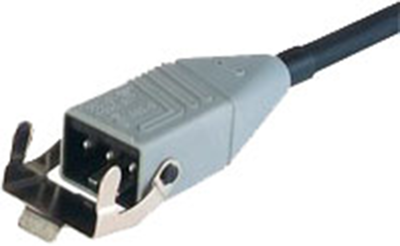

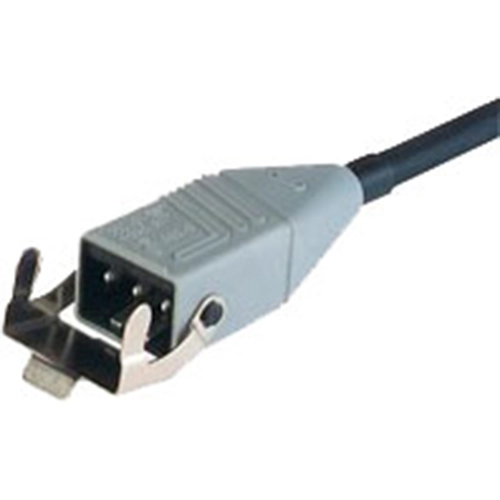

Cable connectors with molded cable, type STAS 3 K.
With 1.0 m H05RR-F4G0.75 cable and STAS 3 connector with safety bracket; Conductor cross-sections: 0.75 mm². Temperature range of the cable: –25 to +60 °C.

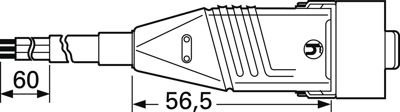

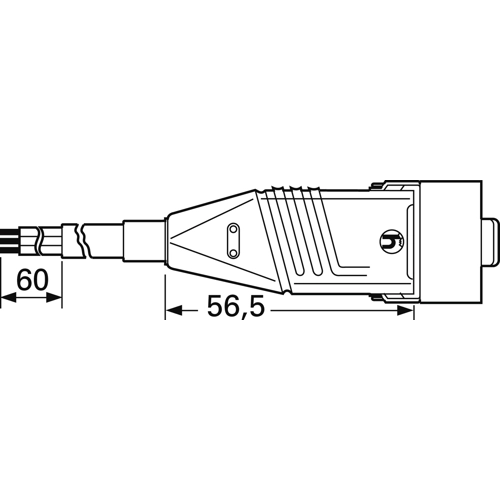

Type: STAS 3 K, cable connector with molded cable
| Anschluss (1) | Stecker STAS 3, gerade | |
| Anschluss (2) | offenes Ende | |
| Ausführung | Geräteanschlussleitung | |
| Farbe | grau | |
| Kabel | H05RR-F4G0,75 mm² | |
| Kabellänge | 1 m | |
| Landeskennung | Europa | |
| Leiterquerschnitt | 0,75 mm² | |
| Nennstrom | 10 A |
| Ursprungsland | HU |
| Zolltarifnummer | 85444290 |
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
