972246008 | Hirschmann Automation and Control
Connection line, Europe, plug STAS 2, straight on open end, H05RR-F3G0.75 mm², gray, 1 m, 972246008
Miniature connectors, 2-pole + PE, series ST, type Hirschmann STAS../STAK.
With molded cable, with screw terminals for conductors to max. 1.5 mm²; Contacts: CuZn, tin. Case: PA to UL 94 V-1, gray. Contact carrier: PA to UL 94 HB. Rated voltage: 250 VDC/400 VAC. Rated current: 10 AUC. Contact resistance: 5.0 mohm. Pin diameter: 2.0 mm. Degree of protection (IEC 60529): IP 54. Degree of soiling: 3. Screwed cable gland: Pg 7. Cable diameter: 4.0 to 6.5 mm. Operating temperatures: - 30 to +90 °C. Certifications: UL. Not compatible with connectors with end number 200.

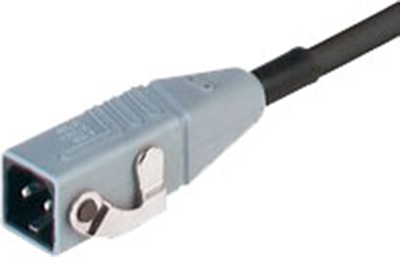

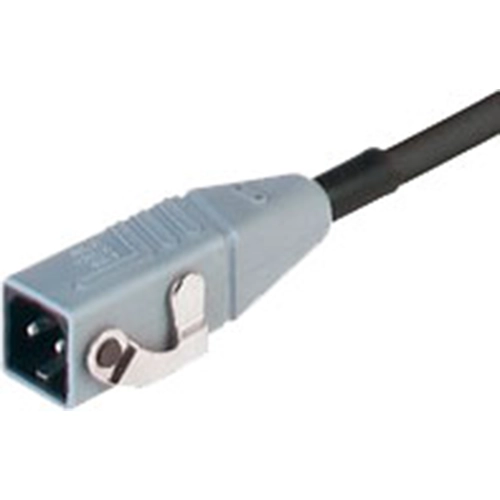

Cable connectors with molded cable, type STAS 2 K.
With 1.0 m H05RR-F3G0.75 cable and STAS 2 plug with safety clip; Conductor cross-section: 0.75 mm².
Type: STAS 2 K, cable connector with molded cable
| Anschluss (1) | Stecker STAS 2, gerade | |
| Anschluss (2) | offenes Ende | |
| Ausführung | Geräteanschlussleitung | |
| Farbe | grau | |
| Kabel | H05RR-F3G0,75 mm² | |
| Kabellänge | 1 m | |
| Landeskennung | Europa | |
| Leiterquerschnitt | 0,75 mm² | |
| Nennstrom | 10 A |
| Ursprungsland | HU |
| Zolltarifnummer | 85444290 |
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
