12253 | Hirschmann Automation and Control

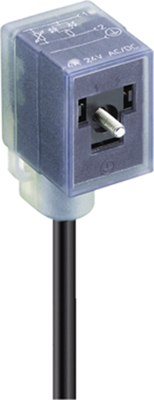

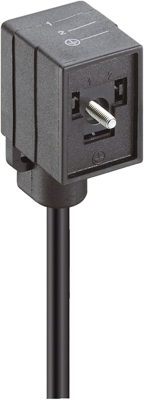

Sensor actuator cable, valve connector DIN shape B to open end, 3 pole, 2 m, PVC, black, 4 A, 12253
Unit Price (€ / pc.)
6.9020 € *
Available: 0 pcs.
Leadtime: 24 Weeks **
Rectangular connectors with cable, type Lumberg Automation VBD.
2-pole + PE, to DIN EN 175301-803, design B; Cable color: black. Rated current: 4.0 A. Insulation resistance: min. 10 Gohm. Degree of soiling: 3. Degree of protection: IP 67 in screwed state. Housing material: TPU. Contact block: PBT. Contact: CuZn, nickel-plated and tinned.
Technical attributes (type, rated voltage, cable length, version): VBD 1D-3-1-205/2 M, 240 V, 2.0 m
Technical specifications
| Anschluss (1) | Ventilsteckverbinder DIN form B | |
| Anschluss (2) | offenes Ende | |
| Farbe | schwarz | |
| Kabellänge | 2 m | |
| LED-Anzeige | No | |
| Material | PVC | |
| max. Spannung | 250 V | |
| Nennstrom | 4 A | |
| Polzahl | 3-polig | |
| Schutzart (IP) | IP67 |
Download
Logistics
| Ursprungsland | CZ |
| Zolltarifnummer | 85444290 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
