43899 | Hirschmann Automation and Control
Sensor actuator cable, valve connector DIN shape B to open end, 2 pole + PE, 2 m, PUR, black, 4 A, 43899
Unit Price (€ / pc.)
8.9845 € *
Available: 0 pcs.
Leadtime: 29 Weeks **

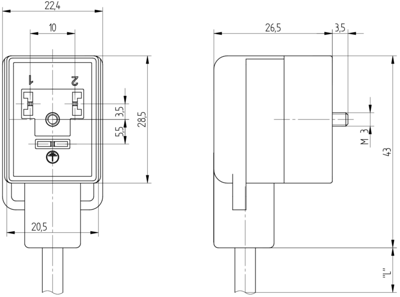

Valve Connector Type B, VBD 1B-1-1-226/2 M, Hirschmann
Dependable Technology, Perfect Connection
Intuitive handling combined with a particularly durable design makes the proven type B valve connectors the ideal choice for challenging industrial automation surroundings.
FEATURES
- Easy to connect – with plug-andplay, prewired cordsets or flexible field attachables, user-friendly
- Easy to maintain – protective circuitries combined with all-around clearly visible LED function displays facilitate quick optical controls and ease of maintenance
- Easy to rely on – ideal for harsh applications due to an extended temperature range, high imperme- ability and a vibration-proof design
Technical Data
- Version: DIN FORM B
- Pin number: 2 + PE
- Wiring: Diode
- Cable cross-section: 0.5 mm²
Technical specifications
| Anschluss (1) | Ventilsteckverbinder DIN form B | |
| Anschluss (2) | offenes Ende | |
| Farbe | schwarz | |
| Kabellänge | 2 m | |
| LED-Anzeige | Yes | |
| Material | PUR | |
| max. Spannung | 24 V | |
| Nennstrom | 4 A | |
| Polzahl | 2-polig + PE | |
| Schutzart (IP) | IP65 |
Download
Logistics
| Ursprungsland | CZ |
| Zolltarifnummer | 85444290 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
