44674 | Hirschmann Automation and Control

Sensor actuator cable, valve connector DIN shape B to open end, 3 pole, 5 m, PUR, black, 4 A, 44674

Order No.: 51F5109
EAN: 4099891163433
MPN:
44674
VB 1B-1-1-226/5 M
Series: VB

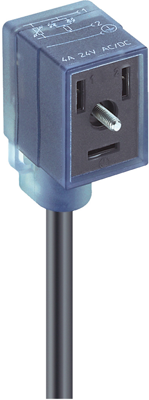

44674 Hirschmann Automation and Control Sensor-Actuator Cables Image 1

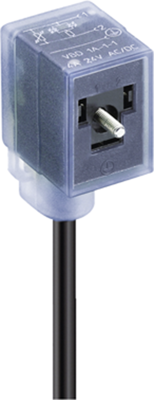

44674 Hirschmann Automation and Control Sensor-Actuator Cables Image 2

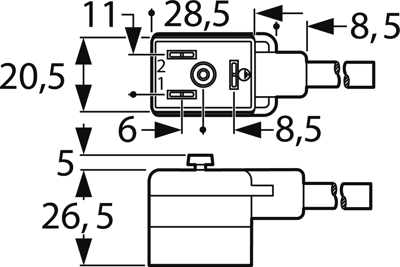

44674 Hirschmann Automation and Control Sensor-Actuator Cables Image 3
Image may differ
Unit Price (€ / pc.)
11.2217 € *
Available: 0 pcs.
Leadtime: 24 Weeks **
Total Price:
11.22 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
11.2217 €

Rectangular connectors with cable, type Lumberg Automation VB.

2-pole + PE, to DIN EN 175301-803, industrial design B; Cable color: black. Rated current: 4.0 A. Insulation resistance: min. 10 Gohm. Degree of soiling: 3. Degree of protection: IP 67 in screwed state. Housing material: TPU. Contact block: PBT. Contact: CuZn, nickel-plated and tinned.

With PUR cable, type VB.

Technical attributes (type, rated voltage, cable length, version): VB 1B-1-1-226/5 M, 24 V, 5.0 m, with LED and suppression diode

Technical specifications
Anschluss (1) Ventilsteckverbinder DIN form B
Anschluss (2) offenes Ende
Farbe schwarz
Kabellänge 5 m
LED-Anzeige Yes
Material PUR
max. Spannung 30 V
Nennstrom 4 A
Polzahl 3-polig
Schutzart (IP) IP65
Logistics
Ursprungsland CZ
Zolltarifnummer 85444290
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
