933395200 | Hirschmann Automation and Control
Panel socket, M12, 4 pole, solder pins, screw locking, straight, 933395200
Unit Price (€ / pc.)
15.1963 € *
Available: 140 pcs.
Leadtime: 28 Weeks **
Total Price:
15.20 € *
Price list
Quantity
Price per unit*
1 pcs.
15.1963 €
10 pcs.
13.9825 €
50 pcs.
12.7211 €
100 pcs.
11.4478 €
*incl. VAT plus shipping costs
**Subject to prior sale

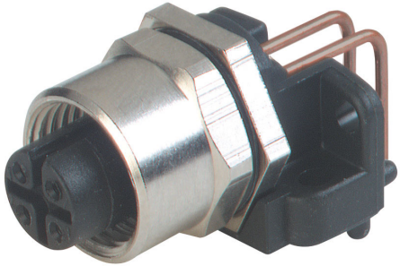

Vertical M12 appliance socket for combined panel and PCB installation, type Hirschmann EF.

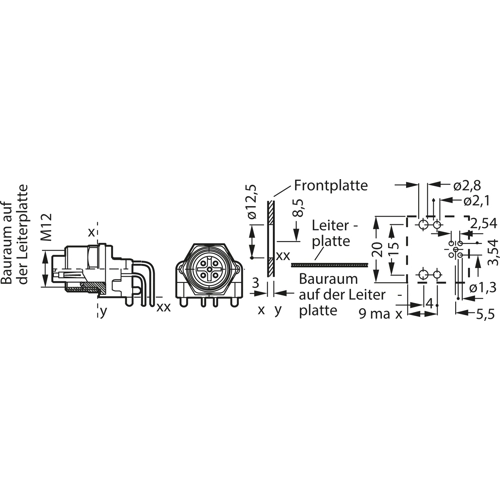

For front panel and PCB mounting with 2-piece screwed metal bushing and 2 O-rings; Operating voltage: 150 V AC/DC (5-pole design = 50 V AC/DC). Operating current: 4.0 A. Contacts: gold-plated CuZn. Pin diameter: 1.0 mm. Contact block: PA, black. Housing: CuZn/Ni Cr. Degree of soiling: 3. Operating temperatures: –25 °C to +90 °C. Design: type EF 12L with straight solder pins for vertical mounting, type EF 12LW with angled solder pins for horizontal mounting. Approval: UL in preparation.
Technical attributes (type, number of poles, mounting type): EF 12LW4 Au, 4-pole, horizontal
Technical specifications
| Version | Einbaubuchse | |
| Pin number | 4-polig | |
| Thread size | M12 | |
| Coding | A | |
| Type of locking | Schraubverriegelung | |
| Orientation | gerade | |
| Contact connection | Lötstifte | |
| contact surface | vergoldet | |
| Additional parts | bestückt | |
| Assembly | Leiterplattenmontage | |
| Degree of protection (IP) | IP67 |
Download
Logistics
| Country of origin | HU |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
