AGF 1 | Hirschmann Test & Measurement
Miniature alligator clip, silver, max. 1 mm, L 17 mm, CAT O, solder/crimp connection, AGF 1
Unit Price (€ / pc.)
1.6660 € *
Available: 178 pcs.
Available in 6 Days: 600 pcs.
Leadtime: On Request **
Total Price:
1.67 € *
Price list
Quantity
Price per unit*
1 pcs.
1.6660 €
10 pcs.
1.4161 €
200 pcs.
1.2138 €
600 pcs.
1.1543 €
1000 pcs.
1.1067 €
*incl. VAT plus shipping costs
**Subject to prior sale

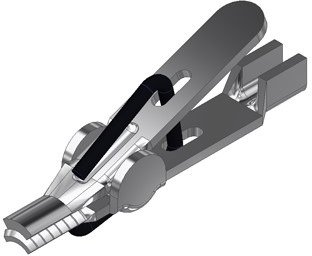

Aligator clip, AGF 1, Hirschmann Test & Measurement
The AGF 1 is a miniature aligator clip for small components on printed circuits and silverplated surface with maximum connecting lead cross-section/maximum clamping range 0.5-1 mm².
Technical specifications
| Connection | solder/crimp connection | |
| Rated Voltage | 30 VAC/60 VDC | |
| Rated current | 3 A | |
| Colour | silver | |
| clamping force range | max. 1 mm | |
| Contact material | brass | |
| contact surface | silver-plated | |
| Length | 17 mm | |
| Rated category | CAT O |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369095 |
| Original Packaging | Carton with 200 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
