AGF 20 | Hirschmann Test & Measurement
Alligator clip, silver, max. 12 mm, L 49 mm, CAT O, socket 4 mm, AGF 20
Unit Price (€ / pc.)
1.0472 € *
Available: 603 pcs.
Available in 6 Days: 3,300 pcs.
Leadtime: On Request **
Total Price:
1.05 € *
Price list
Quantity
Price per unit*
1 pcs.
1.0472 €
10 pcs.
0.9163 €
100 pcs.
0.7854 €
500 pcs.
0.6664 €
1000 pcs.
0.6188 €
*incl. VAT plus shipping costs
**Subject to prior sale

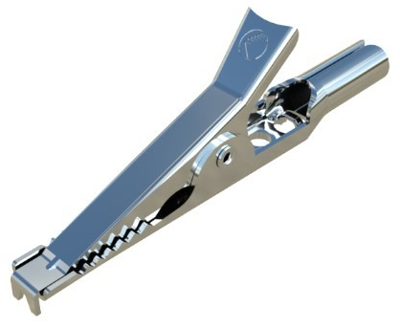

Aligator clip, AGF 20, Hirschmann Test & Measurement
The AGF 20 is a nickel-plated steel alligator clip. This product has a special shape that allows clamping of both extremely fine and thick wires, with 4 mm diameter socket connection and solder connection possible.
Technical specifications
| Connection | socket 4 mm | |
| Rated Voltage | 30 VAC/60 VDC | |
| Rated current | 4 A | |
| Colour | silver | |
| clamping force range | max. 12 mm | |
| Contact material | steel | |
| contact surface | nickel-plated | |
| Length | 49 mm | |
| Rated category | CAT O |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369095 |
| Original Packaging | Carton with 100 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
