AK 10 GN | Hirschmann Test & Measurement
Alligator clip, green, max. 6 mm, L 53 mm, CAT O, socket 4 mm, AK 10 GN
Unit Price (€ / pc.)
1.8207 € *
Available: 24 pcs.
Leadtime: 3 Weeks **
Total Price:
1.82 € *
Price list
Quantity
Price per unit*
1 pcs.
1.8207 €
10 pcs.
1.5351 €
50 pcs.
1.4756 €
100 pcs.
1.4280 €
*incl. VAT plus shipping costs
**Subject to prior sale

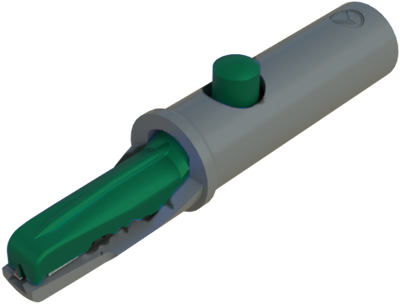

Aligator clip, AK 10 GN, Hirschmann Test & Measurement
The AK 10 GN is a insulated alligator clip with clamping range up to 6 mm bolt diameter and fine wire section for very thin wires. In this product only the lower part of the clip has a tin-plated, brass contact insert with 4 mm diameter socket connection.
Technical specifications
| Anschluss | Buchse 4 mm | |
| Bemessungsspannung | 30 VAC/60 VDC | |
| Bemessungsstrom | 6 A | |
| Farbe | grün | |
| Klemmbereich | max. 6 mm | |
| Kontaktmaterial | Messing | |
| Kontaktoberfläche | verzinnt | |
| Länge | 53 mm | |
| Messkategorie | CAT O |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85369095 |
| Originalverpackung | Karton mit 50 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
