AK 10 SW | Hirschmann Test & Measurement
Alligator clip, black, max. 6 mm, L 53 mm, CAT O, socket 4 mm, AK 10 SW
Unit Price (€ / pc.)
1.8921 € *
Available: 0 pcs.
Next delivery: 32 pcs. on 2025-01-07
Available in 6 Days: 2,350 pcs.
Leadtime: On Request **
Total Price:
1.89 € *
Price list
Quantity
Price per unit*
1 pcs.
1.8921 €
10 pcs.
1.5946 €
50 pcs.
1.5351 €
100 pcs.
1.4756 €
500 pcs.
1.3209 €
*incl. VAT plus shipping costs
**Subject to prior sale

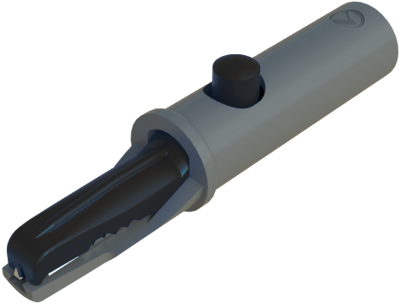

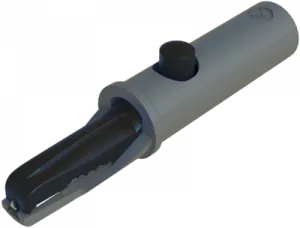

Aligator clip, AK 10 SW, Hirschmann Test & Measurement
The AK 10 SW is a insulated alligator clip with clamping range up to 6 mm bolt diameter and fine wire section for very thin wires. In this product only the lower part of the clip has a tin-plated, brass contact insert with 4 mm diameter socket connection.
Technical specifications
| Connection | socket 4 mm | |
| Rated Voltage | 30 VAC/60 VDC | |
| Rated current | 6 A | |
| Colour | black | |
| clamping force range | max. 6 mm | |
| Contact material | brass | |
| contact surface | tin-plated | |
| Length | 53 mm | |
| Rated category | CAT O |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369095 |
| Original Packaging | Carton with 50 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
