AK 2 B 2540 I BL | Hirschmann Test & Measurement
Alligator clip, blue, max. 30 mm, L 85 mm, CAT II, socket 4 mm, AK 2 B 2540 I BL
Unit Price (€ / pc.)
4.9504 € *
Available: 28 pcs.
Available in 6 Days: 400 pcs.
Leadtime: On Request **
Total Price:
4.95 € *
Price list
Quantity
Price per unit*
1 pcs.
4.9504 €
20 pcs.
4.3673 €
100 pcs.
4.0698 €
500 pcs.
3.9032 €
1000 pcs.
3.6771 €
*incl. VAT plus shipping costs
**Subject to prior sale
Aligator clip, AK 2 B 2540 I BL, Hirschmann Test & Measurement

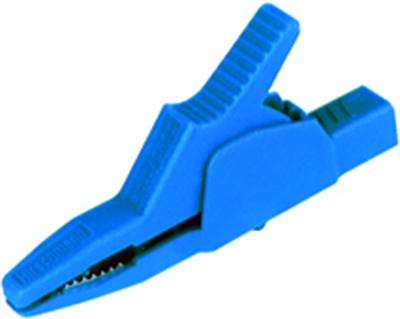

The AK 2 B 2540 I BL is a alligator clip contact protected with high-strength and wide opening, with clamping range up to 30 mm bolt diameter. This product has a solid wire clip U-shaped and fine wire section. Nickel-plated brass connecting socket, pluggable with 4mm safety measuring leads.

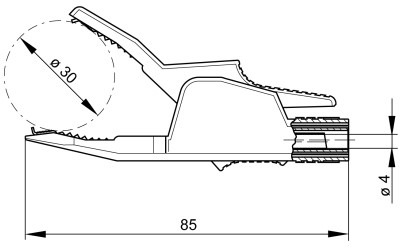

Technical specifications
| clamping force range | max. 30 mm | |
| Connection | Buchse 4 mm | |
| Colour | blau | |
| Contact material | Messing | |
| contact surface | vernickelt | |
| Rated category | CAT II | |
| Rated Voltage | 1000 V | |
| Rated current | 32 A | |
| Length | 85 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369095 |
| Original Packaging | Karton mit 20 Stück |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
