AK 2 B RT | Hirschmann Test & Measurement
Alligator clip, red, max. 9.5 mm, L 81 mm, CAT II, socket 4 mm, AK 2 B RT
Unit Price (€ / pc.)
3.5224 € *
Available: 14 pcs.
Available in 6 Days: 2,000 pcs.
Leadtime: On Request **
Total Price:
3.52 € *
Price list
Quantity
Price per unit*
1 pcs.
3.5224 €
20 pcs.
3.1178 €
100 pcs.
2.8798 €
500 pcs.
2.7727 €
1000 pcs.
2.6180 €
*incl. VAT plus shipping costs
**Subject to prior sale

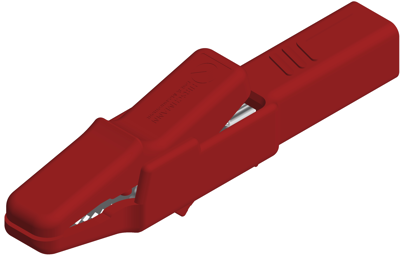

Alligator clip, AK 2 B RT, Hirschmann Test & Measurement
The AK 2 B RT is a alligator clip contact protected with high-strength, with clamping range up to a bolt diameter of 9.5 mm. The part of the jaws (fine wire section) allows a secure contact to be made when clamping even the thinner wire.
Technical specifications
| Anschluss | Buchse 4 mm | |
| Bemessungsspannung | 300 V | |
| Bemessungsstrom | 25 A | |
| Farbe | rot | |
| Klemmbereich | max. 9,5 mm | |
| Kontaktmaterial | Messing | |
| Kontaktoberfläche | vernickelt | |
| Länge | 81 mm | |
| Messkategorie | CAT II |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85369095 |
| Originalverpackung | Karton mit 20 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
