AK 2 S BL | Hirschmann Test & Measurement
Alligator clip, blue, max. 9.5 mm, L 80.5 mm, CAT O, socket 4 mm, AK 2 S BL
Unit Price (€ / pc.)
2.8798 € *
Available: 10 pcs.
Available in 6 Days: 300 pcs.
Leadtime: On Request **
Total Price:
2.88 € *
Price list
Quantity
Price per unit*
1 pcs.
2.8798 €
20 pcs.
2.5347 €
100 pcs.
2.3681 €
500 pcs.
2.2848 €
1000 pcs.
2.1539 €
*incl. VAT plus shipping costs
**Subject to prior sale

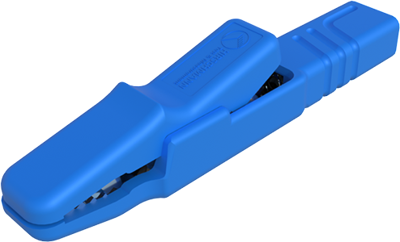

Alligator clip, AK 2 S BL, Hirschmann T&M
Insulated, high strength alligator clip. Clamping range up to 9.5 mm bolt diameter. The flat part of the jaws (fine wire section) allows even the finest wires to be clamped. 4 mm diameter socket connection and screw connection up to 1.5 mm².
Technical specifications
| Connection | socket 4 mm | |
| Rated Voltage | 30 VAC/60 VDC | |
| Rated current | 25 A | |
| Colour | blue | |
| clamping force range | max. 9.5 mm | |
| Contact material | brass | |
| contact surface | nickel-plated | |
| Length | 80.5 mm | |
| Rated category | CAT O |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369095 |
| Original Packaging | Carton with 20 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
