AK 2 S SW | Hirschmann Test & Measurement
Alligator clip, black, max. 9.5 mm, L 80.5 mm, CAT O, socket 4 mm, AK 2 S SW
Unit Price (€ / pc.)
2.7846 € *
Available: 208 pcs.
Available in 6 Days: 7,180 pcs.
Leadtime: On Request **
Total Price:
2.78 € *
Price list
Quantity
Price per unit*
1 pcs.
2.7846 €
20 pcs.
2.4514 €
100 pcs.
2.2848 €
500 pcs.
2.2015 €
1000 pcs.
2.0825 €
*incl. VAT plus shipping costs
**Subject to prior sale

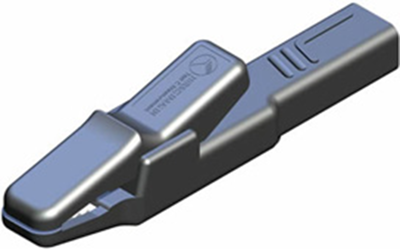

Aligator clip, AK 2 S SW, Hirschmann Test & Measurement
The AK 2 S SWis a high strength insulated aligator clip with clamping range up to 9.5 mm bolt diameter. The flat part of the jaws (fine wire section) allows even the finest wires to be clamped.
Technical specifications
| Anschluss | Buchse 4 mm | |
| Bemessungsspannung | 30 VAC/60 VDC | |
| Bemessungsstrom | 25 A | |
| Farbe | schwarz | |
| Klemmbereich | max. 9,5 mm | |
| Kontaktmaterial | Messing | |
| Kontaktoberfläche | vernickelt | |

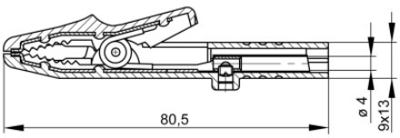

| Länge | 80.5 mm | |
| Messkategorie | CAT O |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85369095 |
| Originalverpackung | Karton mit 20 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
