KLEPS 064 PCH GE | Hirschmann Test & Measurement
Miniature clamp test probe, yellow, max. 1 mm, L 35 mm, CAT O, pin 0.64 mm, KLEPS 064 PCH GE
Unit Price (€ / pc.)
16.0055 € *
Available: 8 pcs.
Available in 6 Days: 20 pcs.
Leadtime: On Request **
Total Price:
16.01 € *
Price list
Quantity
Price per unit*
1 pcs.
16.0055 €
10 pcs.
14.0896 €
50 pcs.
13.1257 €
100 pcs.
12.5426 €
500 pcs.
11.8762 €
*incl. VAT plus shipping costs
**Subject to prior sale

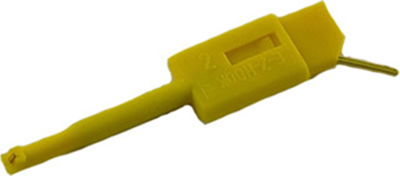

Clamp test probes, KLEPS 064 PCH GE, Hirschmann Test & Measurement
The KLEPS 064 PCH GE is a clamp type test probe, with a small weight and the compact design offers the posibility to use it at very small components.

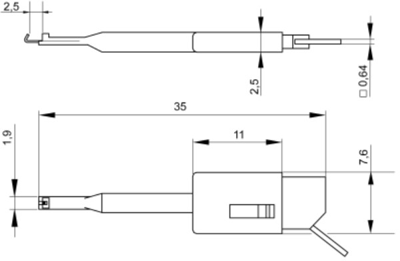

Technical specifications
| Connection | pin 0.64 mm | |
| Rated Voltage | 30 VAC/60 VDC | |
| Colour | yellow | |
| clamping force range | max. 1 mm | |
| Contact material | copper | |
| contact surface | gold-plated | |
| Length | 35 mm | |
| Rated category | CAT O |
Download
Logistics
| Country of origin | US |
| Customs tariff number | 90309000 |
| Original Packaging | Carton with 10 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
