KLEPS 2 BU SW | Hirschmann Test & Measurement
Miniature clamp test probe, black, max. 2 mm, L 57.5 mm, CAT O, socket 2 mm, KLEPS 2 BU SW
Unit Price (€ / pc.)
5.7596 € *
Available: 10 pcs.
Available in 6 Days: 930 pcs.
Leadtime: On Request **
Total Price:
5.76 € *
Price list
Quantity
Price per unit*
1 pcs.
5.7596 €
10 pcs.
5.0575 €
100 pcs.
4.4625 €
250 pcs.
4.2721 €
1000 pcs.
3.9865 €
*incl. VAT plus shipping costs
**Subject to prior sale
Clamp test probes, KLEPS 2 BU SW, Hirschmann Test & Measurement

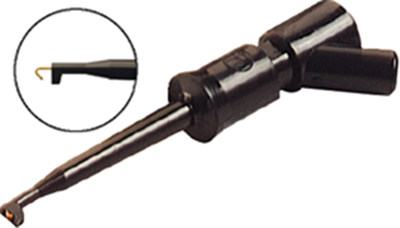

The KLEPS 2 BU SW is a miniature clamp-type test probe with 2 mm diameter socket connection and gold-plated copper beryllium contact spring.This product is suitable for connection to wrap posts up to a maximum
Technical specifications
| Connection | socket 2 mm | |
| Rated Voltage | 30 VAC/60 VDC | |
| Rated current | 6 A | |
| Colour | black | |
| clamping force range | max. 2 mm | |
| Contact material | spring bronze | |
| contact surface | gold-plated | |
| Length | 57.5 mm | |
| Rated category | CAT O |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369095 |
| Original Packaging | Carton with 10 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
