KLEPS 2 SW | Hirschmann Test & Measurement

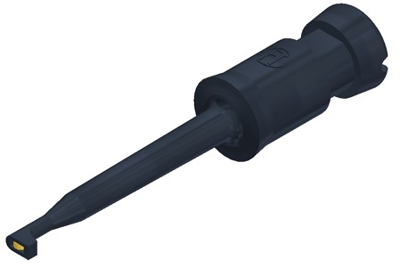

Miniature clamp test probe, black, max. 2 mm, L 57.5 mm, CAT O, solder connection, KLEPS 2 SW
Unit Price (€ / pc.)
3.0226 € *
Available: 7 pcs.
Available in 6 Days: 350 pcs.
Leadtime: On Request **
Total Price:
3.02 € *
Price list
Quantity
Price per unit*
1 pcs.
3.0226 €
10 pcs.
2.6537 €
100 pcs.
2.3324 €
250 pcs.
2.2491 €
1000 pcs.
2.1063 €
*incl. VAT plus shipping costs
**Subject to prior sale
Clamp test probes, KLEPS 2 SW, Hirschmann Test & Measurement
The KLEPS 2 SW is a miniature clamp-type test probe with solder connection. This product has a remove actuator button for soldering when cable is connected press back on until it engages.
Technical specifications
| Connection | solder connection | |
| Rated Voltage | 30 VAC/60 VDC | |
| Rated current | 6 A | |
| Colour | black | |
| clamping force range | max. 2 mm | |
| Contact material | spring bronze | |
| contact surface | gold-plated | |
| Length | 57.5 mm | |
| Rated category | CAT O |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369095 |
| Original Packaging | Carton with 10 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
