MA 1 BL | Hirschmann Test & Measurement

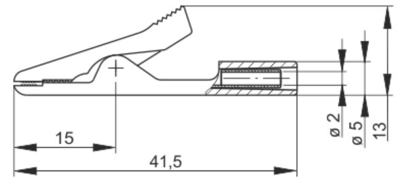

Miniature alligator clip, blue, max. 4 mm, L 41.5 mm, CAT O, socket 2 mm, MA 1 BL
Unit Price (€ / pc.)
1.6184 € *
Available: 38 pcs.
Available in 6 Days: 4,000 pcs.
Leadtime: On Request **
Total Price:
1.62 € *
Price list
Quantity
Price per unit*
1 pcs.
1.6184 €
50 pcs.
1.3804 €
100 pcs.
1.3328 €
200 pcs.
1.2733 €
1000 pcs.
1.1543 €
*incl. VAT plus shipping costs
**Subject to prior sale
Aligator clip, MA 1 BL, Hirschmann Test & Measurement
The MA 1 BL is a miniature alligator clip with high strength insulation and nickel-plated brass/bronze jaws. The part of the jaws (fine wire section) allows a secure contect to be made when clamping even the thinner wire. Capable of clamping flat components (soldering eyes) and wire up to a maximum diameter of 4mm.
Technical specifications
| Anschluss | Buchse 2 mm | |
| Bemessungsspannung | 30 VAC/60 VDC | |
| Bemessungsstrom | 8 A | |
| Farbe | blau | |
| Klemmbereich | max. 4 mm | |
| Kontaktmaterial | Messing | |
| Kontaktoberfläche | vernickelt | |
| Länge | 41.5 mm | |
| Messkategorie | CAT O |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85369095 |
| Originalverpackung | Karton mit 50 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
