MA 1 CRIMP GR | Hirschmann Test & Measurement
Miniature alligator clip, gray, max. 4 mm, L 41.5 mm, CAT O, crimp connection, MA 1 CRIMP GR
Unit Price (€ / pc.)
1.6779 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
1.68 € *
Price list
Quantity
Price per unit*
1 pcs.
1.6779 €
50 pcs.
1.4399 €
100 pcs.
1.3685 €
500 pcs.
1.3209 €
1000 pcs.
1.1900 €
*incl. VAT plus shipping costs
**Subject to prior sale
Aligator clip, MA 1 CRIMP GR, Hirschmann Test & Measurement

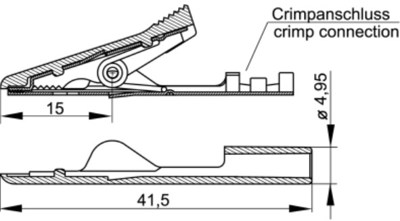

The MA 1 CRIMP GR is a miniature alligator clip with high strength insulation and nickel-plated brass / bronze jaws. The flat part of the chuck jaws (fine wire section) allows a secure contacting, when thin wires be pinched. It is possible to clamp of flat components (soldering eyes) and wires up to a maximum diameter of 4mm. This product has a crimp connection for 0,25mm² up to 0,5mm² wiring, with following assembly of the bottom insulating part (shim).
Technical specifications
| Connection | crimp connection | |
| Rated Voltage | 30 VAC/60 VDC | |
| Rated current | 8 A | |
| Colour | gray | |
| clamping force range | max. 4 mm | |
| Contact material | brass | |
| contact surface | nickel-plated | |
| Length | 41.5 mm | |
| Rated category | CAT O |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
| Original Packaging | Carton with 50 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
