MA 2 VA GE | Hirschmann Test & Measurement
Alligator clip, yellow, max. 4 mm, L 41.5 mm, CAT O, socket 2 mm, MA 2 VA GE
Unit Price (€ / pc.)
1.7017 € *
Available: 46 pcs.
Available in 6 Days: 200 pcs.
Leadtime: On Request **
Total Price:
1.70 € *
Price list
Quantity
Price per unit*
1 pcs.
1.7017 €
50 pcs.
1.4518 €
100 pcs.
1.3923 €
500 pcs.
1.3447 €
1000 pcs.
1.2019 €
*incl. VAT plus shipping costs
**Subject to prior sale
Aligator clip, MA 2 VA GE, Hirschmann Test & Measurement

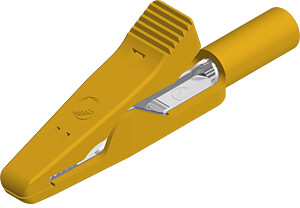

The MA 2 VA GE is a miniature alligator clip with high strength insulation and 2 mm socket connection. Jaws and spring in stainless steel. The flat part of the jaws (fine wire section) allows a secure contact to be made when clamping even the thinnest wires. This product is capable of clamping flat components (soldering eyes) and wires up to a maximum diameter of 4 mm.
Technical specifications
| Anschluss | Buchse 2 mm | |
| Bemessungsspannung | 30 VAC/60 VDC | |
| Bemessungsstrom | 6 A | |
| Farbe | gelb | |
| Klemmbereich | max. 4 mm | |
| Kontaktmaterial | Edelstahl | |

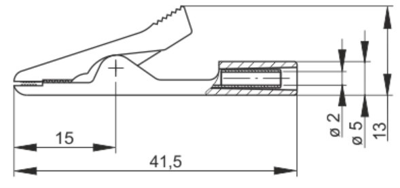

| Länge | 41.5 mm | |
| Messkategorie | CAT O |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85366990 |
| Originalverpackung | Karton mit 50 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
