MICRO-KLEPS SW | Hirschmann Test & Measurement
Miniature clamp test probe, black, max. 2 mm, L 53.8 mm, CAT O, pin 0.64 mm, MICRO-KLEPS SW
Unit Price (€ / pc.)
5.9500 € *
Available: 0 pcs.
Available in 6 Days: 270 pcs.
Leadtime: On Request **
Total Price:
5.95 € *
Price list
Quantity
Price per unit*
1 pcs.
5.9500 €
10 pcs.
5.2360 €
100 pcs.
4.5934 €
250 pcs.
4.4268 €
1000 pcs.
4.1412 €
*incl. VAT plus shipping costs
**Subject to prior sale

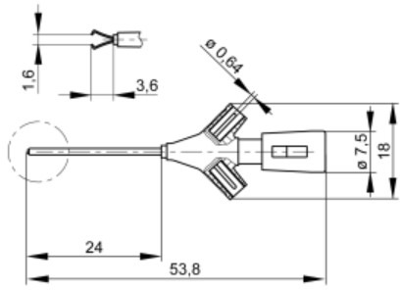

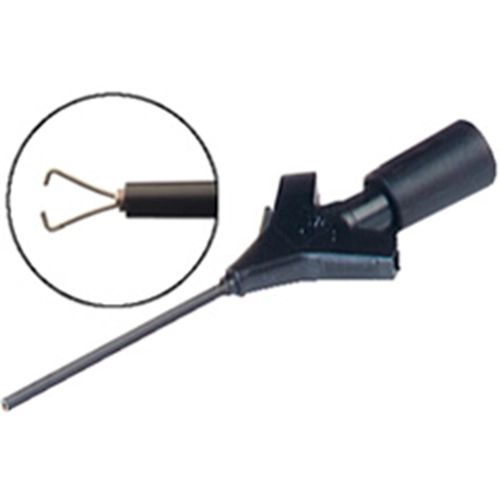

Clamp test probes, MICRO-KLEPS SW, Hirschmann Test & Measurement
The MICRO-KLEPS SW is a miniature clamp-type test probe with rotating grip jaws (SMD technology). The insulated shaft can be bent up to 35º. Tis product is suitable for very thin wires and densely packed contact points (1.27 mm IC spacing pitch).
Technical specifications
| clamping force range | max. 2 mm | |
| Connection | Stift 0,64 mm | |
| Colour | schwarz | |
| Contact material | Federstahl | |
| contact surface | vernickelt | |
| Rated category | CAT O | |
| Rated Voltage | 30 VAC/60 VDC | |
| Rated current | 2 A | |
| Length | 53.8 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369095 |
| Original Packaging | Karton mit 10 Stück |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
