MICRO-SMD CLIP1 | Hirschmann Test & Measurement
Alligator clip, black, max. 8 mm, L 25 mm, CAT O, pin 0.64 mm, MICRO-SMD CLIP1
Unit Price (€ / pc.)
15.8389 € *
Available: 14 pcs.
Available in 6 Days: 140 pcs.
Leadtime: On Request **
Total Price:
15.84 € *
Price list
Quantity
Price per unit*
1 pcs.
15.8389 €
10 pcs.
13.9349 €
50 pcs.
12.9948 €
100 pcs.
12.4117 €
250 pcs.
11.7929 €
*incl. VAT plus shipping costs
**Subject to prior sale
Clamp test probes, MICRO-SMD CLIP1, Hirschmann Test & Measurement

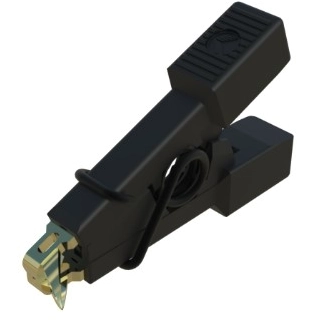

The MICRO-SMD CLIP1 is a miniature clamp-type test probe with rotating grip jaws (SMD technology). The insulated shaft can be bent up to 35º. Tis product is suitable for very thin wires and densely packed contact points (1.27 mm IC spacing pitch).
Technical specifications
| Connection | pin 0.64 mm | |
| Rated Voltage | 30 VAC/60 VDC | |
| Rated current | 1 A | |
| Colour | black | |
| clamping force range | max. 8 mm | |
| Contact material | copper | |
| contact surface | gold-plated | |
| Length | 25 mm | |
| Rated category | CAT O |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369095 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
