PKI 10 A SW AU | Hirschmann Test & Measurement
Pole terminal, 4 mm, black, 30 VAC/60 VDC, 35 A, M4 threaded bolt, gold-plated, PKI 10 A SW AU
Unit Price (€ / pc.)
5.9857 € *
Available: 76 pcs.
Available in 6 Days: 900 pcs.
Leadtime: On Request **
Total Price:
5.99 € *
Price list
Quantity
Price per unit*
1 pcs.
5.9857 €
10 pcs.
5.2598 €
100 pcs.
4.6172 €
500 pcs.
4.4387 €
1000 pcs.
4.1412 €
*incl. VAT plus shipping costs
**Subject to prior sale

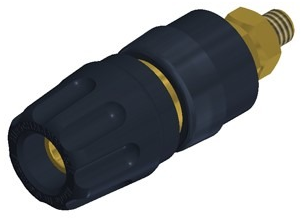

Pole terminal, PKI 10 A SW AU, Hirschmann Test & Measurement
Pole terminal with claw edge and captive insulating head and insulating rings. Threaded bolt with 4 mm diameter made of brass gold-plated with 2 mm diameter cross hole. For insulated, twist-proof installation in equipment chassis and control panels up to 2 mm wall thickness.
Technical specifications
| Anschluss | M4 Gewindebolzen | |
| Bemessungsspannung | 30 VAC/60 VDC | |
| Bemessungsstrom | 35 A | |
| Durchmesser | 4 mm | |
| Einbaudurchmesser | 8 mm | |
| Farbe | schwarz | |
| Kontaktoberfläche | vergoldet | |
| Länge | 41.5 mm |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85366990 |
| Originalverpackung | Karton mit 100 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
