PKI 100 GE | Hirschmann Test & Measurement

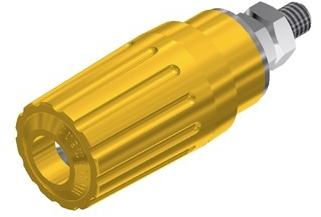

Pole terminal, 4 mm, yellow, 30 VAC/60 VDC, 35 A, M4 threaded bolt, nickel-plated, PKI 100 GE

Order No.: 25F572
EAN: 4099889680478
MPN:
PKI 100 GE
930 757-103
Series: PKI 100
PKI 100 GE Hirschmann Test & Measurement Binding Posts
Image may differ
Unit Price (€ / pc.)
2.9036 € *
Available: 60 pcs.
Leadtime: On Request **
Total Price:
2.90 € *
Price list
Quantity
Price per unit*
1 pcs.
2.9036 €
10 pcs.
2.5585 €
100 pcs.
2.2491 €
500 pcs.
2.1658 €
1000 pcs.
2.0349 €
*incl. VAT plus shipping costs
**Subject to prior sale

Pole terminal, PKI 100 GE, Hirschmann Test & Measurement

Pole terminal with captive insulating head, which is pressed against the insulating rings by a spring. Threaded bolt with 4 mm diameter made of nickel-plated brass with cross hole, diameter 2 mm. For twist-proof installation in panels up to 3.5 mm wall thickness.

Technical specifications
Connection M4 Gewindebolzen
Rated Voltage 30 VAC/60 VDC
Rated current 35 A
diameter 4 mm
Installation diameter 7.7 mm
Colour gelb
contact surface vernickelt
Length 41.5 mm
Logistics
Country of origin DE
Customs tariff number 85366990
Original Packaging Karton mit 100 Stück
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Blei
