PKI 100 GN | Hirschmann Test & Measurement

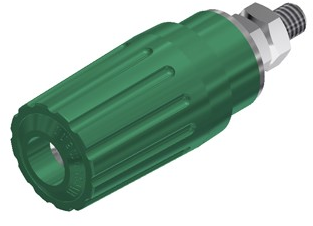

Pole terminal, 4 mm, green, 30 VAC/60 VDC, 35 A, M4 threaded bolt, nickel-plated, PKI 100 GN

Order No.: 25F573
EAN: 4099889680485
MPN:
PKI 100 GN
930 757-104
Series: PKI 100
PKI 100 GN Hirschmann Test & Measurement Binding Posts
Image may differ
Unit Price (€ / pc.)
2.9036 € *
Available: 36 pcs.
Leadtime: On Request **
Total Price:
2.90 € *
Price list
Quantity
Price per unit*
1 pcs.
2.9036 €
10 pcs.
2.5585 €
100 pcs.
2.2491 €
500 pcs.
2.1658 €
1000 pcs.
2.0349 €
*incl. VAT plus shipping costs
**Subject to prior sale

Pole terminal, PKI 100 GN, Hirschmann Test & Measurement

Pole terminal with captive insulating head, which is pressed against the insulating rings by a spring. Threaded bolt with 4 mm diameter made of nickel-plated brass with cross hole, diameter 2 mm. For twist-proof installation in panels up to 3.5 mm wall thickness.

Technical specifications
diameter 4 mm
Colour grün
Rated Voltage 30 VAC/60 VDC
Rated current 35 A
Installation diameter 7.7 mm
Connection M4 Gewindebolzen
contact surface vernickelt
Length 41.5 mm
Logistics
Country of origin DE
Customs tariff number 85366990
Original Packaging Karton mit 100 Stück
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Blei
