PKI 100 SW | Hirschmann Test & Measurement
Pole terminal, 4 mm, black, 30 VAC/60 VDC, 35 A, M4 threaded bolt, nickel-plated, PKI 100 SW
Unit Price (€ / pc.)
2.9036 € *
Available: 89 pcs.
Available in 6 Days: 1,400 pcs.
Leadtime: On Request **
Total Price:
2.90 € *
Price list
Quantity
Price per unit*
1 pcs.
2.9036 €
10 pcs.
2.5585 €
100 pcs.
2.2491 €
500 pcs.
2.1658 €
1000 pcs.
2.0349 €
*incl. VAT plus shipping costs
**Subject to prior sale

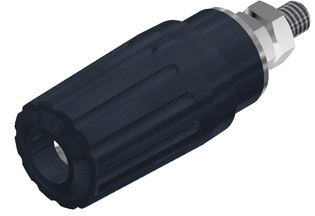

Pole terminal, PKI 100 SW, Hirschmann Test & Measurement
Pole terminal with captive insulating head, which is pressed against the insulating rings by a spring. Threaded bolt with 4 mm diameter made of nickel-plated brass with cross hole, diameter 2 mm. For twist-proof installation in panels up to 3.5 mm wall thickness.
Technical specifications
| Connection | M4 threaded bolt | |
| Rated Voltage | 30 VAC/60 VDC | |
| Rated current | 35 A | |
| diameter | 4 mm | |
| Installation diameter | 7.7 mm | |
| Colour | black | |
| contact surface | nickel-plated | |
| Length | 41.5 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
| Original Packaging | Carton with 100 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
