PKI 110 GE | Hirschmann Test & Measurement
Pole terminal, 4 mm, yellow, 30 VAC/60 VDC, 35 A, M4 threaded bolt, nickel-plated, PKI 110 GE
Unit Price (€ / pc.)
2.4514 € *
Available: 83 pcs.
Available in 6 Days: 300 pcs.
Leadtime: On Request **
Total Price:
2.45 € *
Price list
Quantity
Price per unit*
1 pcs.
2.4514 €
10 pcs.
2.0944 €
100 pcs.
1.9278 €
500 pcs.
1.8207 €
*incl. VAT plus shipping costs
**Subject to prior sale

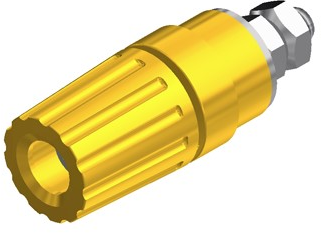

Pole terminal, PKI 110 GE, Hirschmann Test & Measurement
Pole terminal with claw edge, captive insulating head and insulating rings. Threaded bolt with 4 mm diameter made of nickel-plated brass with diameter 2 mm cross hole. For insulated, twist-proof installation in equipment chassis and control panels up to 3.5 mm wall thickness.
Technical specifications
| Anschluss | M4 Gewindebolzen | |
| Bemessungsspannung | 30 VAC/60 VDC | |
| Bemessungsstrom | 35 A | |
| Durchmesser | 4 mm | |
| Einbaudurchmesser | 7 mm | |
| Farbe | gelb | |
| Kontaktoberfläche | vernickelt | |
| Länge | 42 mm |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85366990 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
