PKN 10 B SW | Hirschmann Test & Measurement
Pole terminal, 4 mm, black, 30 VAC/60 VDC, 63 A, solder connection/M6 threaded bolt, nickel-plated, PKN 10 B SW
Unit Price (€ / pc.)
5.5573 € *
Available: 86 pcs.
Available in 6 Days: 300 pcs.
Leadtime: On Request **
Total Price:
5.56 € *
Price list
Quantity
Price per unit*
1 pcs.
5.5573 €
10 pcs.
4.8790 €
100 pcs.
4.2959 €
500 pcs.
4.1055 €
1000 pcs.
3.8437 €
*incl. VAT plus shipping costs
**Subject to prior sale

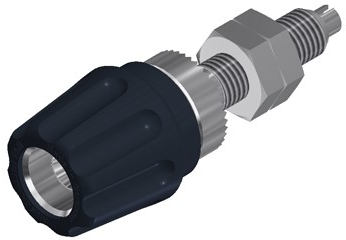

Pole terminal, PKN 10 B SW, Hirschmann Test & Measurement
Pole terminal with claw edge and captive insulating head - diameter 4 mm. Threaded bolt with 6 mm diameter made of nickel-plated brass with 2.6 mm cross hole. For twist-proof installation in equipment chassis and control panels.
Technical specifications
| Connection | solder connection/M6 threaded bolt | |
| Rated Voltage | 30 VAC/60 VDC | |
| Rated current | 63 A | |
| diameter | 4 mm | |
| Installation diameter | 7.5 mm | |
| Colour | black | |
| contact surface | nickel-plated | |
| Length | 52 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
