BIL 30 VI AU | Hirschmann Test & Measurement

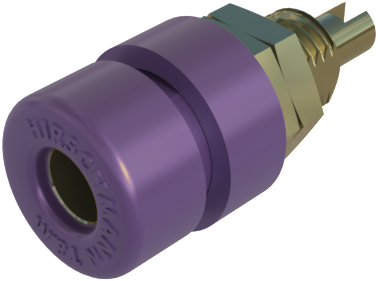

4 mm socket, screw connection, mounting Ø 8 mm, CAT O, purple, BIL 30 VI AU
Unit Price (€ / pc.)
3.0940 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
3.09 € *
Price list
Quantity
Price per unit*
1 pcs.
3.0940 €
50 pcs.
2.7132 €
200 pcs.
2.3919 €
1000 pcs.
2.2491 €
2000 pcs.
2.0468 €
*incl. VAT plus shipping costs
**Subject to prior sale
Panel jacks, 4.0 mm, type Hirschmann T & M BIL.
For 4.0 mm plugs, with solder terminals, insulating head and insulating ring for switchboard mounting;Contact type: female, not spring loaded. Contact material: gold plated zinc die-cast. Rated voltage: 30 VAC/60 VDC. Rated current: 32 A. Contact resistance: 3.5 mohm. Operating temperatures: - 25 to +85 °C.
For mounting in panels with thickness up to 4.0 mm, type BIL 30.
Technical attributes (type, housing color, contact finish): BIL 30 Au, purple, gold plated zinc die-cast
Technical specifications
| Anschluss | Schraubanschluss | |
| Ausführung | Buchse | |
| Bemessungsspannung | 30 VAC/60 VDC | |
| Bemessungsstrom | 32 A | |
| Berührungssicher | No | |
| Durchmesser | 4 mm | |
| Einbaudurchmesser | 8 mm | |
| Farbe | violett | |
| Kontaktoberfläche | vergoldet | |
| Länge | 23 mm | |
| Messkategorie | CAT O |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85366990 |
| Originalverpackung | Karton mit 200 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
