4 mm plug, solder connection, 2.5 mm², CAT O, red, BUELA 30 K AU RT
Unit Price (€ / pc.)
1.5232 € *
Available: 42 pcs.
Available in 6 Days: 800 pcs.
Leadtime: On Request **
Total Price:
1.52 € *
Price list
Quantity
Price per unit*
1 pcs.
1.5232 €
10 pcs.
1.4042 €
50 pcs.
1.3209 €
100 pcs.
1.2376 €
500 pcs.
1.1517 €
*incl. VAT plus shipping costs
**Subject to prior sale

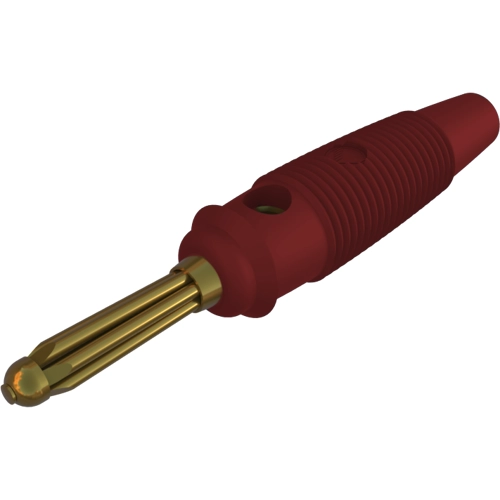

Plug, BUELA 30 K AU RT, Hirschmann Test & Measurement
Multiple-spring wire plug, shatter-proof, flexible insulated sleeve with transverse hole. The tapering sleeve end also serves as kinking protection for the lead. Solder connection up to maximum cable cross-section of 2.5 mm². Gold-plated brass contact material.
Technical specifications
| Connection | solder connection | |
| Version | plug | |
| Rated Voltage | 30 VAC/60 VDC | |
| Rated current | 30 A | |
| Touch safe | No | |
| diameter | 4 mm | |
| Colour | red | |
| contact surface | gold-plated | |
| Length | 60 mm | |
| Cable cross-section | 2.5 mm² | |
| Rated category | CAT O |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
| Original Packaging | Carton with 50 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
