BUELA 30 K SW | Hirschmann Test & Measurement
4 mm plug, solder connection, 2.5 mm², CAT O, black, BUELA 30 K SW
Unit Price (€ / pc.)
1.1781 € *
Available: 5,194 pcs.
Leadtime: On Request **
Total Price:
1.18 € *
Price list
Quantity
Price per unit*
1 pcs.
1.1781 €
50 pcs.
1.0353 €
250 pcs.
0.9044 €
1000 pcs.
0.7854 €
2500 pcs.
0.7259 €
*incl. VAT plus shipping costs
**Subject to prior sale

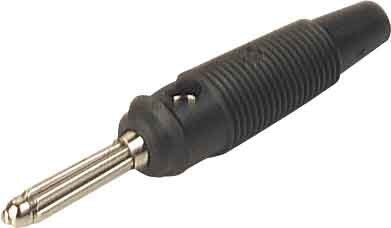

Multiple spring wire plugs, 4.0 mm, type Hirschmann T & M BUELA 30 K.
Step-on-proof, flexible insulating sleeve with transversal hole; Contact material: nickel-plated brass. Rated voltage: 60 VDC. Rated current: 30 A. Contact resistance: 3.0 mohm. Operating temperatures: - 25 to +70 °C.
Technical attributes: color: black, solder connection: up to 2.5 mm².
Technical specifications
| Anschluss | Lötanschluss | |
| Ausführung | Stecker | |
| Bemessungsspannung | 30 VAC/60 VDC | |
| Bemessungsstrom | 30 A | |
| Berührungssicher | No | |
| Durchmesser | 4 mm | |
| Farbe | schwarz | |
| Kontaktoberfläche | vernickelt | |
| Länge | 60 mm | |
| Leiterquerschnitt | 2,5 mm² | |
| Messkategorie | CAT O |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85366990 |
| Originalverpackung | Karton mit 50 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
