BUG 10 SW | Hirschmann Test & Measurement
4 mm socket, screw connection, mounting Ø 6 mm, CAT O, black, BUG 10 SW
Unit Price (€ / pc.)
1.3090 € *
Available: 116 pcs.
Available in 6 Days: 800 pcs.
Leadtime: On Request **
Total Price:
1.31 € *
Price list
Quantity
Price per unit*
1 pcs.
1.3090 €
10 pcs.
1.1186 €
100 pcs.
0.9520 €
200 pcs.
0.9044 €
600 pcs.
0.8449 €
*incl. VAT plus shipping costs
**Subject to prior sale

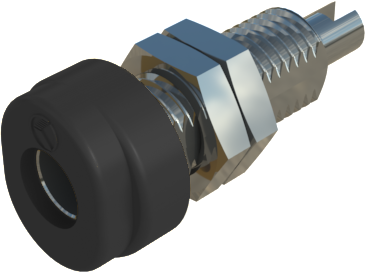

Panel jacks, 4.0 mm, type Hirschmann T & M BUG 10.
For 4.0 mm plugs. With oval insulated head made of PF. No insulating ring; Contact material: tinplated zinc die-cast, solder connection. Rated voltage: 60 VDC. Rated current: 16 A. Operating temperatures: –25 to +85 °C. Not suitable for mounting in sheet metal panels.
Ausführung verzinnt.
Type: BUG 10, black
Technical specifications
| Anschluss | Schraubanschluss | |
| Ausführung | Buchse | |
| Bemessungsspannung | 30 VAC/60 VDC | |
| Bemessungsstrom | 16 A | |
| Berührungssicher | No | |
| Durchmesser | 4 mm | |
| Einbaudurchmesser | 6 mm | |
| Farbe | schwarz | |
| Kontaktoberfläche | verzinnt | |
| Länge | 23 mm | |
| Messkategorie | CAT O |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85366990 |
| Originalverpackung | Karton mit 200 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
