KUN 30 RT AU | Hirschmann Test & Measurement

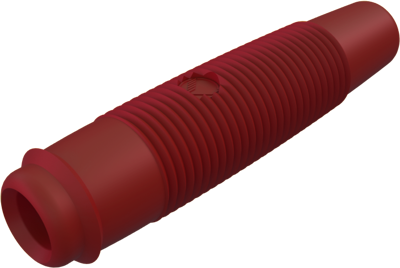

4 mm jack, solder connection, 2.5 mm², CAT O, red, KUN 30 RT AU

Order No.: 20F2114
EAN: 4099889667776
MPN:
KUN 30 RT AU
931 804-701
Series: KUN 30 Au
Hirschmann Test & Measurement
KUN 30 RT AU Hirschmann Test & Measurement Laboratory Connectors
Image may differ
Unit Price (€ / pc.)
2.3205 € *
Available: 187 pcs.
Leadtime: On Request **
Total Price:
2.32 € *
Price list
Quantity
Price per unit*
1 pcs.
2.3205 €
50 pcs.
1.9754 €
100 pcs.
1.9040 €
500 pcs.
1.7969 €
1000 pcs.
1.6303 €
*incl. VAT plus shipping costs
**Subject to prior sale

Jacks, 4.0 mm, type Hirschmann T & M KUN 30.

For 4.0 mm plug, with step-on-proof flexible insulating sleeve, solder terminals up to 2.5 mm²; Contact material: gold-plated brass. Rated voltage: 60 VDC. Rated current: 16 A. Operating temperatures: - 25 to +70 °C.

Gold-plated.

Type: KUN 30 Au, red

Technical specifications
Anschluss Lötanschluss
Ausführung Kupplung
Bemessungsspannung 30 VAC/60 VDC
Bemessungsstrom 16 A
Durchmesser 4 mm
Farbe rot
Kontaktoberfläche vergoldet
Länge 48 mm
Leiterquerschnitt 2,5 mm²
Messkategorie CAT O
Logistics
Ursprungsland DE
Zolltarifnummer 85366990
Originalverpackung Karton mit 50 Stück
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei No
Substanz Beschreibung Blei
