KUN S GN | Hirschmann Test & Measurement

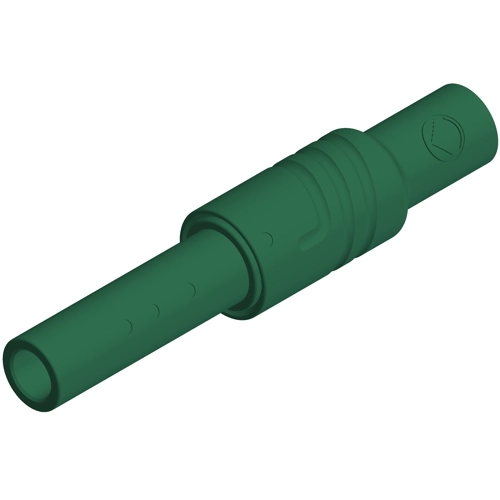

4 mm jack, screw connection, 0.5-1.5 mm², CAT III, green, KUN S GN

Order No.: 20F204
EAN: 4099889667691
MPN:
KUN S GN
934 096-104
Series: KUN S
Hirschmann Test & Measurement
KUN S GN Hirschmann Test & Measurement Laboratory Connectors
Image may differ
Unit Price (€ / pc.)
3.4867 € *
Available: 25 pcs.
Available in 6 Days: 350 pcs.
Leadtime: On Request **
Total Price:
3.49 € *
Price list
Quantity
Price per unit*
1 pcs.
3.4867 €
10 pcs.
3.0821 €
50 pcs.
2.6894 €
100 pcs.
2.5823 €
500 pcs.
2.4157 €
*incl. VAT plus shipping costs
**Subject to prior sale

Laboratory connector, KUN S GN, HIRSCHMANN

The KUN S GN is a safety coupling with screw connection for leads from 0.5 mm² to 1.5 mm² and the outer diameter of the lead is max. 4,2 mm.

Technical specifications
Connection screw connection
Version jack
Rated Voltage 1000 V
Rated current 24 A
Touch safe Yes
diameter 4 mm
Colour green
contact surface nickel-plated
Length 48.2 mm
Cable cross-section 0.5-1.5 mm²
max. Cable diameter 4.2 mm
Rated category CAT III
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
