MKU 1 WS | Hirschmann Test & Measurement

2 mm jack, solder connection, 0.5 mm², white, MKU 1 WS

Order No.: 20F221
EAN: 4099889667882
MPN:
MKU 1 WS
930 320-107
Series: MKU 1
MKU 1 WS Hirschmann Test & Measurement Laboratory Connectors
Image may differ
Unit Price (€ / pc.)
1.2138 € *
Available: 138 pcs.
Next delivery: 70 pcs. on 2025-04-08
Leadtime: On Request **
Total Price:
1.21 € *
Price list
Quantity
Price per unit*
1 pcs.
1.2138 €
10 pcs.
0.9758 €
100 pcs.
0.9163 €
500 pcs.
0.7735 €
1000 pcs.
0.7259 €
*incl. VAT plus shipping costs
**Subject to prior sale

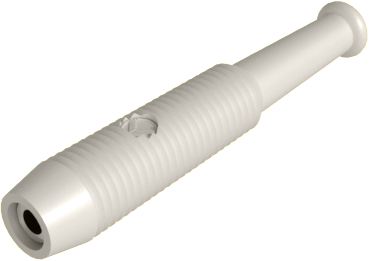

Jacks, 2.0 mm, type Hirschmann T & M MKU 1.

For 2.0 mm plugs. Solder terminals, flexible and step-on proof insulation sleeve. Contact spring made of tinned copper beryllium; Rated voltage: 60 VDC. Rated current: 6.0 A. Operating temperatures: –20 to +60 °C.

Type: MKU 1, white

Technical specifications
Connection Lötanschluss
Version Kupplung
Rated Voltage 30 VAC/60 VDC
Rated current 6 A
Touch safe No
diameter 2 mm
Colour weiß
contact surface verzinnt
Length 39 mm
Cable cross-section 0,5 mm²
Logistics
Country of origin DE
Customs tariff number 85366990
Original Packaging Karton mit 100 Stück
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
